MAx100 Series Analyzers
MA5100 Series Memory Analyzer
Memory analyzer supports testing and compliance of DDR5, LPDDR5(X), LPDDR4(X) and LPDDR3 including performance, margins and capture up to LPDDR5X-9600, LPDDR4X-4267 and LPDDR3-2133 with 1G-Sample acquisition depth, ClockSafe™ and Single Smart Frequency or Sixteen Smart Frequency Analysis.
Memory analyzer supports testing and compliance of DDR5, LPDDR5(X), LPDDR4(X) and LPDDR3 including performance, margins and capture up to LPDDR5X-9600, LPDDR4X-4267 and LPDDR3-2133 with 1G-Sample acquisition depth, ClockSafe™ and Single Smart Frequency or Sixteen Smart Frequency Analysis.MA4100 Series Memory Analyzer
Memory analyzer supports testing and compliance of DDR4 and DDR3, including performance, margins and capture up to DDR4-3200 and DDR3-2133 with 1G-Sample acquisition depth.
Memory analyzer supports testing and compliance of DDR4 and DDR3, including performance, margins and capture up to DDR4-3200 and DDR3-2133 with 1G-Sample acquisition depth.The Nexus Difference
No matter where you are in your product development cycle we have you covered! Complete test analysis and validation of your product design, power-on, debug, compliance and optimization.
Electrical Analysis. Product analysis and validation starts by examining the analog characteristics of the signals on your memory bus using an oscilloscope… …more.
Logic / Compliance Analysis. Compliance analysis performed after or alongside electrical (analog) analysis and consists of: logic (command transfer) verification and timing… …more.
Latest News

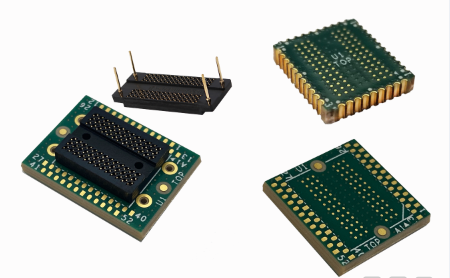

New Oscilloscope Interposer – LPDDR5X 315-Ball EdgeProbe (1/19/2024) - Fast, reliable access. Annoucing 8.5 GT/s oscilloscope interposer support for LPDDR5X and LPDDR5 315-ball BGAs. All major oscilloscope vendors supported 315-ball LPDDR5(X) 2x16 BGA Component JEDEC standard JESD209-5 Easily access signals: EdgeProbe Design Embedded tip resistors Risers available S-Parameters for de-embedding and simulation Install with standard BGA rework Attachment & analysis services available LPDDR5X Oscilloscope… ...Continue Reading
Nexus Analyzer Support for JEDEC LPDDR5 Memory Increases to 9600MT/s (6/29/2023) - Nexus Technology announces support for JEDEC LPDDR5X-9600 on the Nexus Technology MA5100 Memory Analyzer / Logic Analyzer. This increases the acquisition and analysis capabilities of the analyzer which previously supported only LPDDR5X-8533 (and slower). The MA5100 enables designers, implementors, and users to validate, debug, monitor, and optimize their LPDDR5 memory interface. ...Continue Reading
New Flying-Lead Analyzer Probe (9/15/2022) - Nexus Technology announces the PRB-FL-20 probe. This probe enables flying-lead connectivity of modern and emerging memory technologies to leading-edge memory analysis systems. Specifically, the probe enables acquisition and analysis of DDR5, LPDDR5(X), LPDDR4(X), and LPDDR6 memory buses using a MA5100 series real-time memory analyzer. ...Continue Reading
